Dynamics of temperature and time in the bio-conversion of cassava peels collected from a local gari processing factory in Nigeria

S O Aro, O J Odejayi, V A Aletor, A A Ashimi, A A Adeboye and B Usifo

Department of Animal Production and Health, Federal University of Technology, Akure, Ondo State, Nigeria.
sambolaro@yahoo.co.uk

Abstract

The interplay of temperature and time in the bio-conversion of cassava peel was investigated in a fifteen day fermentation study during which cassava peels were fermented both naturally and through a consortium of selected micro-organisms.



The temperature of the microbially fermented cassava peel (MFCP) samples varied from 39.26±3.06oC on day 1 to 48.00±0.17oC on day 2 and thereafter falling to 34.40±0.20oC on day 15 of fermentation. The temperature of the naturally fermented cassava peels (NFCP) samples varied from 35.93±2.54oC on day 1 and rose to attain the highest temperature of 53.03±0.76oC on day 4 and the lowest temperature of 34.33±2.25oC on day 14 of fermentation. The temperature recorded for the fermenting cassava tuber wastes varied between the two processing methods and from the ambient temperature throughout the fermentation period. Analysis of the samples harvested from the fermenting waste at five days interval while the fermentation period lasted revealed that the moisture content decreased with increased fermentation days in the two processing methods but was more pronounced in the NFCP sample. Crude protein, ether extract and ash were improved with successive days of fermentation while the levels of crude fibre and anti-nutrients were reduced. The observation of time and temperature dynamics in the fermentation process however revealed that the interval between day 5 and day 10 could be considered as the optimum period for the bio-conversion or nutrient enhancement in the two processing methods beyond which only marginal increase or even a decrease in the nutrient enhancement could be recorded.

Keywords: Cassava wastes, fermentation, inoculation, nutrient enhancement, unconventional feed ingredients


Introduction

The use of unconventional feed ingredients as very cheap alternatives in livestock feeding has been suggested by many authors (Adebajo et al 2008; Aro et al 2008; Banjoko et al 2008). Also the use of many processing methods geared at nutrient enhancement and anti-nutrient degradation of these unconventional feed ingredients especially those of agro-industrial origin has been advanced (Ayuk et al 2008; Akinmutimi et al 2009; Yashim et al 2009).



 There is however a dearth of information on the interplay of temperature and time in the entire solid fermentation process in terms of the temperature differentials of the processing methods and the optimum period of nutrient enhancements in majority of the nutrient enhancement methods employed. The objective of this study was therefore to investigate the dynamics of temperature and time in two of the cassava peel processing methods with a view to identifying and recommending the optimum temperature and time for the bioconversion of cassava peels and possibly of other cassava waste products.


Materials and methods

Experimental site and materials

The experiment was carried out at the Federal University of Technology, Akure which is located in the humid rain forest zone of Nigeria. The cassava peels used for the trial were collected from Ayetoro gari processing factory, located at the Federal Secretariat, Alagbaka, Akure, Ondo State. Two methods were employed in the solid fermentation technique of the cassava peels: the natural fermentation and the microbial fermentation methods.



The natural fermentation process or method was carried out by weighing fresh cassava peels of 50kg each into three polythene sacks. Their open ends were securely tied and the sacks were placed on a wooden platform in a covered shed. The temperature readings of the three samples were taken and recorded thrice daily at 6.00a.m., 12.00 noon and 6.00p.m. The ambient temperature was equally recorded at each reading of the sample temperature.



In the microbial fermentation process, two lactic acid bacteria-Lactobacillus delbrueckii and Lactobacillus coryneformis and a fungus-Aspergillus fumigatus were cultured at the Microbiology laboratories of the Department of Microbiology of the University of Technology, Akure. Fermentation trays of dimensions 4cm, 54cm and 38cm for depth, length and width respectively were constructed. One kilogramme each of dried fresh cassava peels was weighed, moistened with 1000cl of water and packed in waterproof nylon bags, sealed and steam-sterilised for 30 minutes. They were cooled to 37°C, emptied into the trays under a pre-sterilised lamina flow chamber and inoculated with 40mls of a suspension of Aspergillus fumigatus containing 1.2x106 spore/ml and 30mls each of a suspension of the two lactic acid bacteria containing 1.2x104 cells/ml. The trays were kept in six-tier fermentation chambers (Plate 1) and the fermentation process was monitored by taking the samples’ temperature at 6.00a.m, 12.00 noon and 6.00p.m alongside the ambient temperature for fifteen days.



Photo 1: Six-tier fermentation chamber used for microbial
fermentation of cassava peels and the fermentation trays.

Statistical analysis

All data were subjected to one-way analysis of variance (ANOVA) using the SAS (2000) statistical package. Means separation, where appropriate, was performed with Duncan’s multiple range test of the same statistical package.


Results and discussion

The result of the temperature and time dynamics in the fermentation process is shown in Table 1.

Table 1: Comparison of ambient temperature (oC) with the temperature of the fermenting cassava peels on successive fermentation days

                      T    e    m    p    e    r    a    t    u    r    e



Days of fermentation

Ambient

NFCP

MFCP

SEM

P-values

1

27.9b

35.9ab

39.3a

2.07

0.03

2

27.6b

44.7a

48.0a

3.26

0.04

3

28.0c

49.3a

46.1b

3.35

0.01

4

27.7c

53.0a

42.5b

3.75

0.01

5

26.5c

52.1a

42.3b

3.81

0.01

6

26.8c

46.8a

40.5b

3.01

0.01

7

27.2c

50.9a

36.4b

3.50

0.01

8

28.7c

51.5a

38.7b

3.33

0.01

9

27.7c

47.0a

38.2b

2.85

0.01

10

26.6c

44.3a

37.2b

2.61

0.01

11

28.2b

38.7a

37.7a

1.76

0.03

12

28.3b

41.4a

37.6a

2.02

0.03

13

26.8b

36.0a

37.0a

1.67

0.03

14

27.0b

34.3a

35.4a

1.53

0.03

15

27.4c

39.1a

34.4b

1.73

0.01

a,b,c = Means in the same row but with different superscripts are different (P<0.05)

NFCP = Naturally fermented cassava peel, MFCP = Microbially fermented cassava peel, SEM = Standard error of the means.

The inoculation was done when the temperature of the cassava peels was 37°C and the ambient temperature at 27°C. The fermentation process in the two methods started with a gradual rise in temperature (lag phase) and continued to rise at an increasing rate (log phase) for the first two days in the MFCP samples and the first four days in the NFCP samples such that the highest temperatures were recorded on day 2 (48.00°C) and day 4 (53.03°C) in these fermenting cassava peel samples respectively. The rise in temperature indicated the release of energy as a result of active microbial activities caused by increased microbial biomass (Plates 2 and3) due to ample availability of nutrients that resulted from primary metabolism.



Photo 2: Cassava peel sample exposed to show the extent of fungal growth on day 5 of fermentation




Photo 3: A much magnified view of the fermented cassava peel sample to show the extent of mycelial growth on day 5 of fermentation


This is in consonance with the work of Okafor (1987), which stated that primary metabolism is essential and is concerned with the release of energy in form of adenosine triphosphate (ATP) and other higher energy compounds which are used in biosynthetic reactions. With increase in microbial biomass, more energy was produced leading to an exothermic reaction within the substrate thus increasing the temperature of the fermenting cassava wastes. The temperature continued to rise until a decrease in temperature was observed on day 3 in the MFCP and on day 5 in the NFCP and these marked the beginning of decline in the temperature readings. The lowest temperature was recorded on day 15 in MFCP (34.40°C) and on day 14 in NFCP (34.33°C). The decline in temperature would have been caused by reduction in the microbial biomass as a result of the depletion of nutrients in the media and the production of toxic microbial wastes. Lee (2001) reported a decrease in temperature towards the end of fermentation as a result of the process entering the idiophase during which secondary synthesis occurred in the late logarithmic and in the stationary phase prior to the death phase. Lee (2001) also stated that microbial growth and death are influenced by availability of nutrients, accumulation of end products and environmental factors like temperature, chemicals and radiation. Figure I vividly showed the trends in the rise and fall of temperature in the fermenting cassava peels with that of the ambient temperature over the 15 day period.

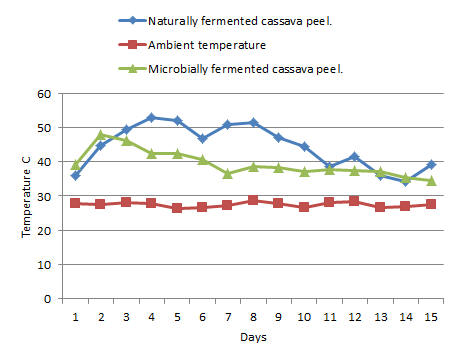

Figure I: Temperature chat comparing the ambient temperature with those of cassava peels fermented naturally and through microbial inoculation.


Table 2 shows the result of proximate composition of the NFCP and MFCP samples on day 0, day 5, day 10 and day 15 of fermentation.


Table 2: Proximate composition and crude fibre components (%) of naturally fermented and microbially fermented cassava peels on successive days of fermentation.

Parameters

Day 0

Day 5

Day 10

Day 15

±SEM

P-values

MFCP

NFCP

MFCP

NFCP

MFCP

NFCP

MFCP

NFCP

Moisture

5.07a

5.18a

3.08b

4.05b

2.60c

2.94c

2.46d

2.28d

0.19

0.01

Crude protein

2.43c

2.87c

8.94b

9.69ab

9.56ab

8.71b

8.41b

8.90b

0.28

0.03

Crude fibre

24.7

25.1

23.0

24.0

22.4

23.3

20.8

20.8

0.25

0.13

Ether extract

3.67

3.21

3.80

3.36

4.18

3.58

4.39

3.91

0.09

0.17

Ash

4.76

5.84

5.15

5.12

5.27

4.52

5.37

4.37

0.23

0.13

NFE

64.5a

63.0a

59.1bc

57.8c

58.6bc

59.9bc

61.0b

62.0b

0.39

0.03

NDF

34.8a

34.6a

33.8b

32.7b

30.5c

29.8c

28.1d

26.5d

0.30

0.01

ADF

16.9a

16.8a

13.3b

12.5b

8.16c

10.3c

6.62d

7.48d

0.37

0.01

Hemicellulose

18.0c

17.8c

20.5b

20.2b

22.3a

19.5b

21.5ab

19.0b

0.23

0.04

a,b,c,d = Means in the same row but with different superscripts are statistically (P<0.05) significant.

NFCP = Naturally fermented cassava peel, MFCP = Microbially fermented cassava peel, SEM = Standard error of the means, NFE = Nitrogen free extracts.


There was a progressive reduction in the moisture content of the cassava peel samples as the days of fermentation increased with the lowest moisture content recorded on the 15th day of fermentation. This could be an indication that the micro-organisms made use of the moisture content for growth which led to the increase in the dry matter content of the peels as a result of increase in microbial biomass (Aro et al 2008b). The ash content improved in the MCFP samples throughout the fermentation period while it decreased in the NFCP sample. It would therefore mean that the selected micro-organisms under microbial inoculation had mineral element enhancing ability. The levels of crude protein and ether extracts increased as fermentation period lengthened while the level of crude fibre and NFE decreased. This is in line with the work of Aro et al (2008b) which reported that microbial fermentation of cassava starch residues led to an increase in protein, mineral and fat and decrease in crude fibre and NFE contents. The increase in protein content would have been caused by the accumulation of microbial biomass in the form of single cell proteins and also on the possible secretion of extracellular enzymes into the cassava peels by the micro-organisms in their attempt to make use of the starch content of the peel as a source of carbon (Akindahunsi et al 1999). The increase in the fat content of the cassava peels as a result of fermentation could not be categorically stated. However, there could be possible bio-transformation of excess carbohydrates to fat by the micro-organisms (Akindahunsi et al 1999).



Table 3 shows the anti-nutrient composition of the fermented cassava peels at five day intervals within the 15 day period of the experiment.


Table 3: Anti-nutrient composition (mg/kg) of naturally and microbially fermented cassava peels on successive days of fermentation.

Parameters

Day 0

MFCP  NFCP

Day 5

MFCP  NFCP

Day 10

MFCP  NFCP

Day 15

MFCP  NFCP

±SEM

P-values

Cyanide

   34.0a       32.7a

  16.4b     16.2b

    16.0b     15.8b

    8.04c     7.77c

0.86

0.03

Phytate

   1960a      1950a

  1420b    862c

    939c      529d

    605d      322e

39.5

0.01

Oxalate

   289a        288a

  183c      276a

   176c       248b

    173c      221b

6.56

0.03

a,b,c,d,e = Means in the same row but with different superscripts are statistically (P<0.05) significant.

NFCP = Naturally fermented cassava peel, MFCP = Microbially fermented cassava peel, SEM = Standard error of the means.


The Table revealed significant reduction in the level of the anti-nutrients as fermentation days increased. The reduction of cyanide content of the peels was similar between the two processing methods throughout the fermentation period. Similar reduction in the level of cyanide of cassava peels through solid media fermentation was reported by Oboh (2006) and Tweyongyere and Katogole (2002).  Phytate reduction was more effectively done in the natural fermentation method such that by the fifth day 55.7% of the phytate content had been degraded in the NFCP samples as opposed to 27.5% in the MFCP samples. Reduction of phytate in cassava wastes through fermentation has been reported by several authors (Ugwu and Oranye 2006; Aro et al 2008a) but differential reduction as recorded in these two processing methods is novel to this trial. A reversal of the trend was observed in the biodegradation of the oxalate component of the peels in which the MFCP samples were better degraded than the NFCP samples on the successive days of fermentation. It could be observed also that the reduction in the level of oxalate is most time and labour effective within the first five days of fermentation in the MFCP samples beyond which only minimal reduction results.


Conclusion


References

Adebajo M O, Agunbiade J A, Adeyemi O A and Banjoko O S 2008 Enhancing nutrient utilization in cheap, bulky feed ingredients fed to pullets by the use of exogenous enzymes.  Proc. 33rd Annu. Conf. of Nigerian Society for Animal Production (NSAP), Olabisi Onabanjo University, Ago-Iwoye, Nigeria. 17th -20th March, 2008. Pp. 367-372.



Akindahunsi A A, Oboh G and Oshodi A A 1999 Effect of fermenting cassava with Rhizopus oryzae on the chemical composition of its flour and gari. Riv. Ital. Sostance Grasse. 76:437-440.



Akinmutimi A H, Essien U N and Nwagboso I 2009 Effect of processing on proximate, mineral and gross energy composition of velvet bean (Mucuna sloanei). Proc. 34th Annual. Conf. of Nigerian Society for Animal Production (NSAP), University of Uyo, Nigeria. 15th-18th March, 2009. Pp. 286-289.



Aro S O, Aletor V A, Tewe O O, Fajemisin A N, Usifo B and Adesida J A 2008b Studies on the nutritional potentials of Cassava tuber wastes (CTWs) collected from a cassava starch factory. Proc. 4th Annu. Conf. FUTA, SAAT, 21st May, 2008. Pp. 86-92.



Aro S O, Aletor V A, Tewe O O, Fajemisin A N, Usifo B and Falowo A B 2008a Preliminary investigation on the nutrients, anti-nutrients and mineral composition of microbially fermented cassava starch residues. Proc. 33rd Annu. Conf. of Nigerian Society for Animal Production (NSAP), Olabisi Onabanjo University, Ago-Iwoye, Nigeria. 17th -20th March, 2008. Pp. 248-251.



Ayuk A A, Iyayi E A and Okon B I 2008 Solid substrate fermentation of ground leaves of Pterocarpus santalonoides with isolates of Aspergillus niger. Proc. 33rd Annu. Conf. of Nigerian Society for Animal Production (NSAP), Olabisi Onabanjo University, Ago-Iwoye, Nigeria. 17th -20th March, 2008 Pp. 243-245.



Banjoko O S, Agunbiade J A, Awojobi H A, Adeyemi O A and Adebajo M O 2008 Nutritional evaluation of layers diets based on cassava products and soya beans as influenced by protein supplementation and processing. Proc. 33rd Annu. Conf. of Nigerian Society for Animal Production (NSAP), Olabisi Onabanjo University, Ago-Iwoye, Nigeria. 17th -20th March, 2008. Pp.373-376.



Lee C H 2001 Fermentation Technology in Korea. Korea University Press, Seoul, Korea. Pp. 70-91.



Oboh G 2006 Nutrient enhancement of cassava peels using a mixed of Saccharomyces cerevisiae and Lactobacillus spp. in solid media fermentation techniques. Electronic Journal of Biotechnology. 9(1): 233-247.



Okafor N 1987 Metabolic pathways for the biosynthesis of industrial microbiology products. In: Industrial Microbiology. University of Ife Press Ltd. Ile-Ife. Pp. 38.



SAS Users’ Guide: Statistical Analysis Systems 2000 Institute Inc. Cary. North Carolina, U.S.A.



Tweyongyere R and Katongole I 2002 Cyanogenic potentials of cassava peels and their detoxification for utilization as livestock feed. Veterinary and Human Toxicology. 44(6): 366-367.



Ugwu F M and Oranye N A 2006 Effects of some processing methods on the toxic components of African bread fruit (Treculia Africana). African Journal of Biotechnology. 5(22): 2329-2333.



Yashim S M, Segun A J, Abdu S M, Duru S and Adamu H Y 2009 Effect of duration of soaking of rattlebox seeds (Crotalaria retusa L.) on the level of some chemical composition and minerals. Proc. 34th Annu. Conf. of Nigerian Society for Animal Production (NSAP), University of Uyo, Nigeria. 15th-18th march, 2009. Pp.280-282



Received 30 January 2011; Accepted 16 April 2011; Published 1 July 2011
