Further considerations of the potential of nitrate as a high affinity electron acceptor to lower enteric methane production in ruminants

R A Leng and T R Preston*

University of New England, Armidale, NSW, Australia
rleng@ozemail.com.au
* TOSOLY, AA48 Socorro, Santander. Colombia

This paper was presented at the MEKARN International Conference in Pakse, Laos, 9-11 November 2010. In view of the relevance of the subject matter to present research activities related to Global Warming, it was deemed sufficiently important that it should reach a wider audience, hence permission was requested to publish a copy of the paper in LRRD.

Abstract

Rumen fermentation results in the production of a pool of reduced cofactors in the pathways of catabolism of organic matter within rumen microbes. These reduced cofactors are regenerated by 1) synthesis of microbial cells, 2) production of more reduced end products such as propionate and 3) saturation of unsaturated long chain fatty acids but by far the largest proportion of reduced cofactor appear to be regenerated by 4) formation of hydrogen. The concentration of hydrogen in rumen fluid negatively feeds back on the rate of fermentation and microbial growth. The rumen ecosystem has evolved to remove this hydrogen through growth of Archae that obtain energy for their growth by reducing carbon dioxide to methane and water in the rumen.

Ruminal methanogenesis represents a loss of dietary energy to the animal and it is a significant greenhouse gas. Ruminants are credited with a large proportion of the methane accumulating in the world’s atmosphere and a high proportion of the radiative heat forcing of greenhouse gases that have accumulated in the atmosphere. These factors have led to a global search for strategies (including nutritional intervention) to mitigate methane emission from ruminants.

The use of nitrate as a hydrogen sink has been down played, due to the possible toxic effects of nitrite that under some circumstances is formed as an intermediate during the reduction of nitrate to ammonia in the rumen. A few reports have examined the potential of nitrate in vitro as a methane reducing feed additive, which appears to lower methanogenesis consistently.

The rumen ecosystem and the animal need time to adapt to any fermentable N source including urea and nitrate. The requirements for minerals in different dietary conditions appear to be important in determining the microbial consortiums that use these fermentable N sources.

The potential of nitrate conversion ammonia to act as a hydrogen sink in the rumen was reviewed ( Leng 2008) with a clear indication emerging that it is entirely feasible  that nitrate could be used as a fermentable N source by ruminants provided the rumen ecosystem was allowed to adapt over a sufficiently long period and provided certain nutritional conditions were met. In particular the availability of sulphur  appears  to be a crucial issue.

Information derived from other microbial, anaerobic ecosystems showed that in the presence of fermentable organic matter and a source of sulphur and nitrate, nitrate reducing organisms developed that can both reduce nitrate to ammonia and oxidize sulphide to sulphate ( NRSOB) without release of nitrite. At least one prominent rumen organism has this capacity (Wollinella succinogenese) and may be termed an NRSOB.

Studies from the MEKARN group have demonstrated that ruminants fed low protein agro industrial byproducts can utilize nitrate as a fermentable nitrogen source. These groups have been the first to show that nitrate can be fed to ruminants safely under practical conditions and maintain or increase production. Two other groups, with the facilities to measure methane production, have concentrated on the extent to which replacing urea with nitrate salts lowers methane production. Depending on diet and inclusion rate of nitrate, the reduction in methane production has varied from 16-50%.   Approximately 1 mole of nitrate in a diet reduces methane production by 10% and there is evidence of an interaction with dietary sulphur levels

The major limitations to progress in using these alternative fermentable N sources that also act as high affinity electron acceptor has been the production of methaemoglobinaemia that results from nitrite generated in the rumen.

The specialized nature and expensive equipment for measuring respired gases from ruminants has also become a major limitation to progress. Considerable advancement appears possible by a new approach where the ratio of methane to carbon dioxide in air receiving the ruminants breath are used to calculate the percentage lowering of methane release from the animal. This approach is possible as it is well demonstrated that where the only intervention is to replace urea with nitrate in a diet the animal’s energy metabolism( carbon dioxide production)  is a constant in both control( urea fed) and treatment( nitrate fed ) .

In the present studies a modification of published methods have been used to assess the potential reductions in methane that can be achieved when providing alternative electron acceptor via nitrate in the diet and manipulation of other minerals to promote in particular nitrate reducing sulphide oxidation systems  The simplistic and inexpensive requirements make this a useful approach with potential to increase the rate of progress at low cost.

Key words: Carbon dioxide, climate change, greenhouse gases, non-protein N

Introduction

Ruminants have evolved to utilize organic matter, of which most of the digestible energy is present in the structural carbohydrates and to a lesser extent simple sugars or starch.  The rumen microbial ecosystem adapts to ferment a wide range of feed materials with the production of microbial biomass and a number of fermentation end products including methane and the volatile organic acids. Microbial cells, synthesized in the rumen, provide the majority of the animal’s requirements for essential amino acids when microbes are washed out of the rumen and are digested and absorbed from the intestines. The supply of microbial protein from the rumen often requires augmentation with dietary bypass protein to ensure optimal quantity and balance of essential amino acids for production from a particular feed. The volatile fatty acids and plant fats (which are relatively unchanged in the rumen) provide the majority of the energy substrates for maintenance and synthesis of new tissue (see Preston and Leng 2009).

On balanced diets, the rumen is a sustainable microbial habitat, consisting of interactive colonies of bacteria, anaerobic fungi and protozoa. The efficiency of this ecosystem depends on maintaining a low redox potential essential for anaerobic fermentation. The reactions involved in the pathways of carbohydrate and protein degradation generate reduced cofactors, which, if not oxidized inhibit fermentation and subsequently lower feed intake. Various strategies have evolved in the rumen to oxidize the reduced cofactors which results in hydrogen release to the medium. Strictly anaerobic Archaea (methanogens) use this hydrogen to reduce carbon dioxide to methane with the generation of ATP for maintenance and cell growth. However, numerous rumen organisms are able to utilize high affinity electron acceptors such as nitrate and sulphate, generating ammonia and hydrogen sulphide respectively.

In ruminants on a range of diets and therefore with diverse rumen microbial ecosystems, it has been clearly demonstrated that the major electron sinks in the rumen milieu include: 1) growth in the microbial biomass, 2) production of propionate, 3) hydrogenation of unsaturated fatty acids and 4) the generation of methane by the Archaea (see Hungate 1965). The latter requires the release/transfer of hydrogen to methanogens by microbes that ferment the components and intermediate products produced from feed materials.

The question posed is whether it is possible to eliminate or significantly reduce methane production by feeding  nitrate, to provide an alternative electron acceptor whilst still maintaining the efficiency of the fermentative digestion and therefore the nutritional value of the feed and without compromising the animal’s health.

The potential benefits of nitrate as alternative electron acceptor in the diets of ruminants has received little attention, particularly where it may also supply a high proportion of the total N in a feed and where the ATP produced in  reduction of nitrate to ammonia may increase microbial growth efficiency (see Guo et al 2009).

Globally ruminants produce around 80 million tonnes of methane annually, which accounts for about 28% of anthropogenic methane emissions. Reduction in enteric methane production from the large world population of ruminants could significantly reduce global warming. This paper is an update on the report this author produced for the Australian Government’s Climate Control Department (Leng 2008).


Metabolism of nitrate and nitrite in the rumen

A number of research groups have examined the clearance of intra-ruminal nitrate doses in small ruminants (see Figure 1)  An examination of this research showed that the rate of uptake (disappearance) of a nitrate dose  from rumen fluid was extremely rapid.

This rapid initial metabolism of nitrate was previously not recorded because rumen fluid of the injected animals was not sampled until 1 hour after the nitrate solution was placed in the rumen. Making some assumption concerning the size of the rumen fluid pool, the concentration of nitrate assuming instantaneous mixing was calculated (Leng 2008). Within 1 h of administration between 50- 80% of the nitrate dose had disappeared from the rumen contents in studies reported in the literature (see Figure 1). The conclusion is that  within 1 hour of injection of a nitrate load, the rate of removal of nitrate from rumen  fluid slowed to a rate approximating 0.2 of its initial rate of removal.

The abrupt change in the rate of nitrate clearance is perhaps indicative of an exhaustion of a critical nutrient involved in nitrate metabolism which may be the result of a deficiency of sulphide in the rumen fluid pool. This is argued later in the review.

In studies by Sar et al (2004) where sheep were given an intra-ruminal load of nitrate there was  apparently only a small effect of nitrate loading on ruminal fluid ammonia levels  suggesting that nitrate was  being reduced by bacteria to ammonia intracellular and not being released into rumen fluid unlike what happens when urea is hydrolyzed in the rumen. The other aspects of these loading studies are that nitrite builds up in the rumen and peaks long after the rapid removal phase of nitrate metabolism has occurred (Figure 2). This can be explained if the there is a rapid metabolism of nitrate to ammonia which is then slowed by a deficient of critical nutrients causing nitrite to be spilled into the medium.

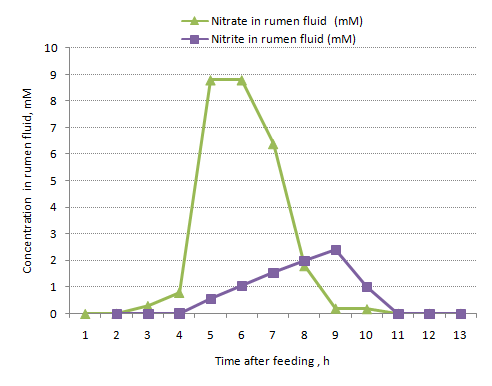

Rumen fluid nitrate and nitrite concentrations in cattle receiving nitrate in feed or as a drench

In studies with cows fed a mixture of hay and concentrates in two meals per day (Kemp et al 1977), the change in nitrite and nitrate concentration in rumen fluid are shown in Figure 3 after the animals had ingested a meal of high nitrate forage (over 45 min) in the morning.

Prior to this experiment the animals had been on this feeding regime for 18 d. Although the cattle were accustomed to a daily dose of nitrate, the nitrate and nitrite concentrations appearing in rumen fluid were transient and both were cleared within 2-3 h (see Figure 3). Again there appears to be a rapid clearance of nitrate and a lag phase before nitrite spilling commences.

The opportunity to use nitrate as a fermentable nitrogen source resides in being able to ameliorate or prevent the production of nitrite because of the adverse effects of nitrite, which when absorbed creates methaemoglobinaemia. The relationships between nitrite and nitrate toxicity have been the subject of much research and often heated debate.

Kemp et al (1977) studied cattle given a variety of feeds in 32 feeding trials and summarized the relationship between the concentration of methaemoglobin in blood and peak nitrite in rumen fluid. The combined results indicate there is a strong relationship between peak rumen nitrite concentration and blood methaemoglobin as a percentage of total blood haemoglobin (Figure 4).

In Figure 5, data are included only where nitrate ingestion resulted in sub-lethal methaemoglobin levels (arbitrarily less than 40% methaemoglobinaemia). The relationship in Figure 5 shows that a small increase in intake of nitrate can result in an exponential increase in blood methaemoglobin..

A comparison using cattle of feeding nitrate sprayed onto hay as against drenching a similar load of nitrate, indicated that the rate of intake of nitrate is an important issue as it could be expected that nitrite production in the rumen will depend on the concentration of nitrate in the rumen at any one time. In feeding trials with dairy heifers, the lethal dose of nitrate in feed was found to be 3 times that injected directly into the rumen or about 1g/kg live weight (Crawford et al 1966).

Geurink et al (1989) pointed out that the rate of diffusion of nitrate from the feed in the rumen was an important factor affecting how much methaemoglobin accumulated in blood. The rate of diffusion of nitrate from a fodder together with the rate of consumption of the forage interacts to affect the level of nitrite appearing in rumen fluid and therefore the amount of nitrite absorbed and hence the percentage methaemoglobin produce

From Figure 5 it seems reasonable to suggest that cattle can be fed up to a level of 20-25g NO₃ /100kg body weight with minimum nitrite production in the rumen even in non-adapted cattle.

In a 200kg beef steer consuming approximately 6kg dry matter say of 50% digestibility (3kg of fermentable organic matter) the addition of 50g of nitrate could supply the fermentable N for at least 0.5 k g fermentable organic matters and lower  methane production of the order of 10%.


Acclimation of rumen organisms to nitrate in their feed

A large number of microbial species found in the rumen have the capacity to reduce nitrate or nitrite to ammonia (see Cheng and Phillippe 1988; Cheng et al 1985). These organisms are quickly transferred between animals and their population densities increase with nitrate in a diet (Cheng et al 1985; Alaboudi and Jones 1985). As sheep are adjusted to dietary nitrate, the rates of both nitrate and nitrite reduction in rumen fluid increased from 3-10 fold (Alaboudi and Jones 1985; Allison and Reddy 1984) (see also Figure 6).

The increase is associated with marked increase in populations of nitrate-reducing bacteria (Allison and Reddy 1984). Other studies of sheep by Allison and Reddy (1984) showed that introducing nitrate for the first time into the rumen, increased the rate of nitrate reduction in strained rumen fluid, in just 4 h, by 15 fold from the low level of activity prior to nitrate introduction. This increase from very low to substantial levels is further increased on a daily basis with time from nitrate’s first inclusion in the diet (Allison and Reddy 1984: Aloubadi and Jones 1985). Thus the accumulation of both nitrate and nitrite in the rumen depends on how long the animal has been accustomed to nitrate in the feed. Surprisingly nitrate clearance, as used in the standard approach initiated by Lewis (1951) has not been repeated with animals acclimated to nitrate.

In 40kg sheep given a diet of lucerne/ground maize, nitrate and nitrite levels in rumen fluid were undetectable but on day 1 of inclusion of nitrate (0.17g of NO₃^- /kg body weight) at 1 h post feeding, nitrate and nitrite concentration in rumen fluid were 1.7 and 0.26 m-mol/litre. respectively. Within 6 days the rumen microbes had adapted and nitrate and nitrite were so rapidly metabolized that their concentrations in rumen fluid were undetectable 1h post feeding (Allison and Reddy 1984).

In a study with sheep, Alaboudi and Jones (1985) increased dietary KNO₃ concentration every 2 weeks (from 0 to 2.5g/kg body weight in 0.5g/kg body weight steps). The rate of removal of added nitrate or nitrite in strained rumen fluid taken from those sheep at the end of each adjustment period was measured in vitro. Three flasks of strained rumen fluid were incubated with both substrate and residual nitrate, or nitrite was measured after 1, 2 and 3h and the rate of disappearance calculated from the slope of plots relating residual nitrate or nitrite to incubation time (see Figure 6).

Nitrate added to the diet of sheep rapidly promotes multiplication of microbes that utilize nitrate as a nitrogen source, or what seems to be more likely induces or increases the activity of nitrate reductase systems in microbes that are already present in the rumen. This increase (up to15 fold) occurs rapidly over the first few hours (Allison and Reddy (1984)) and the capacity to handle nitrate increases with time of exposure and amount of nitrate fed (a further 3-10 fold). The capacity to use nitrate returned to pre-treatment levels within 3 weeks of removal of nitrate from the diet of sheep (Aloubadi and Jones 1985).

Feeding nitrate to ruminants needs to receive detailed research of the microbial ecosystem and pathways of metabolism that occur to ensure the optimum conditions for nitrate ammonification

There is a great deal of apprehension about feeding nitrate to ruminants which has largely stemmed from research that attempted to explain the toxicity syndrome in ruminants. Methaemoglobinaemia represents a significant  risk that is probably manageable in the same way as the risk of urea poisoning is avoided, mainly by slow adaptation to a dietary source of nitrate. Marais et al (1988) have pointed out that nitrite and nitrate may more subtly affect animal production through detrimental indirect effects on rumen organisms, particularly through toxic effects on cellulolytic organisms (Hall et al 1960) that may lower the apparent digestibility of forage or pure cellulose in vitro. Recent research (Trinh Phuc Hao et al 2009)  clearly indicates little or no harmful effects in the rumen  since nitrate supplementation of a sugar cane-based diet to young goats promoted similar growth ratesv as with urea  (see Figure 7)  and there are now many research papers that lead to the same conclusion.

However, there  are many studies that report toxicities with nitrate in the diet. The confusion in the literature is probably owing to the different diets and possibly effects of other requirements in nitrate metabolism.. Molybdenum has key effects on nitrate metabolism (Tillman et al 1965) and sulphur is also implicated by the work of Sokolowski et al (1969).  The effects of nitrate metabolism in reducing the production of hydrogen sulphide in polluted water  and in oil well water purged by salt water provide possible leads to the interactive effects of sulphate and nitrate metabolism in anaerobic systems. Addition of nitrate to sewage as a remedial to the smell of bad eggs (H₂S production) has been known for more than a century and is still used in for instance some of the sewers in Paris.

Is the limitation to nitrate reduction associated with the availability of sulphide in the rumen?

That there are interactions between nitrate and sulphur metabolism in anaerobic ecosystems is clear. In situations where oil organics are fermented, nitrate application apparently blocks hydrogen sulphide production (Greene et al 2003) and balance studies in sheep have shown that nitrate feeding decreased sulphur retention (Sokolowski et al 1969).

Anaerobic fungi in the rumen require a source of reduced sulphur for growth (Gordon and Phillips 1998). These organisms are essential for adequate comminution of highly lignified plant materials in the rumen and a study of the effects of nitrate supplementation on their sulphur requirements is a priority research area.



Overview of transactions in the rumen and methanogenesis

In ruminants, forage is initially mechanically shredded in the process of harvesting, chewing and rumination.  The particle size of feed in the rumen is further reduced by the growth of the radii of anaerobic fungi through the plant tissues. The mechanical and fungal initiated reduction in particle size increases the surface area of substrate and exposes digestible polysaccharides allowing a high density of microbes, mainly bacteria, to attach and solubilize structural carbohydrates, proteins and other components of the feed with the production of volatile fatty acids (VFA). The energy released in conversion of feed to VFA is partially used in microbial growth. A critical requirement in a continuous fermentation is the oxidation of reduced cofactors that are generated in the conversion of organic matter (largely carbohydrate) via the Embden Meyerhof pathway and additional pathways to VFA (see Figure 8). In the rumen, the reduced cofactors must be regenerated by electron transfer to acceptors other than oxygen and the major electron sink in the rumen is methane that is produced by the reduction of carbon dioxide; however, rumen micro-organisms can use both sulphate and nitrate as alternative electron acceptors. The generalized outline of methane production from carbohydrate (glucose) is shown in Figure 8.).

Overview of nitrate utilization and enteric methane production

Nitrate is a potent inhibitor of methanogenesis in all systems,  from fermentative digestion in the rumen to secondary fermentation in a wide range of systems from anaerobic biodigestors to sediments (Hungate 1965; Allison et al 1981; Akunna et al 1994). Respiratory conversion of nitrate to ammonia by anaerobic organisms is highly competitive as an electron sink consuming 8 electrons in the process and out-competing methanogens for electrons in agreement with the free energy change in the reactions which are -598 kJ for the reduction of nitrate to ammonium and  -131 kJ for the reduction of carbon dioxide to methane (see Allison and Reddy 1984; Allison et al 1981).

The predominant pathway of nitrate metabolism in the rumen is uncertain but has always

been assumed or even asserted to be dissimilatory nitrate reduction to ammonia, the overall two step reduction of nitrate shown below,

NO₃^- + 2H⁺ H₂O+ NO_{2---------------------------------------------------------------------------------------} Equation 1

NO₂^-  + 6H⁺   H₂O+ NH_{3--------------------------------------------------------------------------------------} Equation 2

Organisms capable of nitrite ammonification usually have the ability to reduce nitrate to

Nitrite in dissimilatory metabolism (Simon 2002), nitrite being a suitable electron acceptor for anaerobic respiration. Formate and hydrogen are the common electron donors in assimilatory nitrite ammonification.

These substrates are oxidized according to equations 3 and 4 below: The sulphate reducing organisms (SRB) are an exception with the majority of the Desulfovibrio species using nitrite but not nitrate (Mitchell et al 1986). Recently in anoxic ecosystems with high sulphur content  sulphide has been shown to function as an electron donor for respiratory nitrite ammonification in nitrate reducing sulphide oxidizing bacteria (NR-SOB) that oxidize hydrogen sulphide directly (Hubert and Voordouw 2007) (equation 5).

3HCO^-₂ +NO^-₂+5H⁺ 3 CO₂+NH⁺₄ +2H₂O_{------------------------------------------------} Equation 3

3H₂ + NO^-₂  +2 H⁺ NH⁺₄  +2H₂O_{---------------------------------------------------------------} Equation 4

3HS^-  + NO₂^-  +5H⁺  3S⁰  + NH⁺₄  +2H₂O_{---------------------------------------------------} Equation 5

The reaction in equation 5 suggests that nitrate or nitrite uptake could be stimulated by a source of sulphide produced locally. As most organisms that reduce sulphate are also capable of reducing nitrate or nitrite, the feeding of nitrate and sulphate is likely to have important interactions and, in some environments, sulphate reducing organisms are inhibited by nitrite.


Support  for the involvement of S in Nitrate utilisation in the rumen

Sokolowski et al (1960 showed that sheep can tolerate levels of KNO₃ in their diets, that had previously been considered lethal, and grow normally. In subsequent publications, Sokolowski et al (1969) found that adding 3.2% KNO₃ to a concentrate-based diet, with or without added sulphur, lowered the overall growth rates of lambs offered the diet over 48d (see Table 1).

However, there appears to have been no  acclimation period, so the slight drop in live weight gain where nitrate was included in the diet could have been a result of a reduced initial growth when the animals were acclimating to the nitrate. Carver and Pfander (1973) found that 21 d was needed to enable sheep on similar diets to acclimate to KNO₃. In the second experiment, lambs (26 kg) were offered the same diet but restricted to an intake of 1200g/d (Sokolowski et al 1969).  The addition of 3.2% nitrate had little effect on N retention but N balance increased significantly when sulphur was also included in the diet (Table 1 and Figure 9.

Nitrate appears to have a major effect on sulphur metabolism in the rumen. In this study, when nitrate was added to the diet, the apparent sulphur balance in the animal decreased from +0.67 to -0.8 g/day (Table 1). This could have resulted from high nitrate in the diet inhibiting SRB in the rumen (see Nikolic et al 1984).

Hydrogen sulphide is produced from S-amino acids in protein and inorganic sulphur in the rumen and passes into the gas space from which it is lost by eructation. Some of the eructated gases are re-inhaled and enter the lungs and most of the sulphide is absorbed into blood (Dougherty et al 1965), then oxidized to sulphate and excreted in the urine.

An important conclusion from the study of Sokolowski et al (1969) was that nitrate had no ill-effects in lambs on diets that were apparently already adequate in fermentable N. However, with sulphur supplementation, nitrate appeared to enhance the animal’s protein nutrition. Wool growth in sheep is highly correlated with the amount of protein absorbed from the intestines. In the sheep in the studies of Sokolowski et al 1969) there was a tendency for clean wool production to increase with the addition of nitrate (Table 1). In addition the digestibility of nitrogen was highest when both nitrate and sulphur were present in  the diet.

Carver and Pfander (1974) examined the interaction of urea and nitrate in a diet of Timothy hay and molasses (92:8) supplemented with soybean meal that should have been adequate in fermentable N. Supplementing such a diet with 1, 2, 4 or 5% of either urea or KNO₃ had no serious ill-effects on the animals, despite increasing urea and ammonia concentrations in blood. No nitrite toxicities were observed during nitrate supplementation. These workers tentatively suggested that when urea and K-nitrate were supplemented to the basal diet, the rumen micro-organisms utilized the nitrate first, thus decreasing the rate of urea hydrolysis.

In young goats, increasing the nitrate concentrations in a low protein feed in steps every 7 d converted a negative N balance at low concentrations (0.3 and 0.6%) to a positive and increasing N balance at 1.2, 2.4 and 4.8% of the diet (see Figure 10), clearly demonstrating that nitrate was efficiently used as a fermentable nitrogen source for microbial growth in the rumen (Trinh Phuc Hao et al 2009).

Growth rates or N balance were the same in goats fed the same basal diet but including 1% of body weight as tree foliage when either nitrate or urea was the major fermentable nitrogen source (unpublished). In the most recent research the diet was purposely supplemented with a source of sulphur at the upper levels of recommended inclusion (0.4% of diet)

The effects of supplementing  cattle fed a basal diet of caustic soda-treated rice straw clearly demonstrates that sodium nitrate or ammonium nitrate produce the same benefits as urea as the fermentable nitrogen source in these diets (Table 2).

In a recent study (Nolan et al 2010), sheep were fed oat hay and either potassium nitrate or urea (5.4 g N/kg hay), first in metabolism cages and then in respiration chambers. Methane production was reduced by feeding nitrate instead of urea but there were no effects on feed intake, DM digestibility or microbial protein synthesis (Table 3).

The conclusion from the feeding trials is that nitrate can be used as a source of fermentable N in the rumen and, provided the animal is acclimated to nitrate, there will be no ill effects and possibly improved efficiency of microbial growth. It has been hypothesized that nitrate utilization increases the requirements for dietary sulphur (see Leng 2008)  to maintain nitrate conversion to ammonia without spilling nitrite. This is supported by the results of Van Zijderveld et al (2010a), where both nitrate and sulphate additions to the diet of sheep produced the greatest reduction in methane production without any signs of methaemoglobinaemia, It is also supported by the feeding trials in Vietnam (Nguyen Ngoc Anh et al 2010) where sulphur levels were deliberately high and close to the upper recommended inclusion levels. However, this aspect requires considerably more research where nitrate and sulphate levels are varied.   Therefore substantial mitigation of methane production may be anticipated where nitrate replaces urea in low protein diets given to ruminants but again research is needed to test this concept.


Evidence supporting a higher requirement for sulphur in ruminants fed high a high proportion of fermentable nitrogen as nitrate

This has been discussed earlier but the hypothesis has now more support so the main points are given below (see Leng 2008)

• There is direct evidence for increased requirements for sulphur in a diet supplemented with nitrate but the interrelationships need to be established.


• High levels of Mo in a diet appear to affect SRB, reducing sulphide production in the rumen and in turn the rate of nitrite accumulation that increase the risk of methaemoglobinaemia.


• Nitrite accumulation in the rumen has been controlled by administration of cysteine - a potent source of hydrogen sulphide.


• Newly discovered organisms that reduce nitrate and oxidise sulphide (NR-SOB) from non rumen ecosystems and their peculiarities in metabolism appear to provide possibilities for explaining the patterns of metabolic end product production in the nitrate-fed rumen.


• It is hypothesised that the population density of a rumen NR-SOB is controlled by the mean sulphide concentration in rumen fluid. Sulphide in rumen content is dependent on the dietary protein content of grazing ruminants. This suggests that low protein diets would support minor populations of these organisms in the rumen providing support for the research that has already demonstrated the ability to effectively replace urea with nitrates in low protein diets.


• Several rumen organisms have the same capacities as NR-SOBs from other anaerobic environments.

The hypothesised pathways occurring in the rumen are shown in Figure 11.

Heterotrophic NRB reduce nitrate to ammonia using either formate or hydrogen as the electron source. NRB however out-compete the SRB for the same electron donors and may reduce sulphide production The NR-SOB reduce nitrate through nitrite and couple reduction of nitrite to the oxidation of sulphide to sulphate. This can also reduce the availability of hydrogen sulphide. When nitrate is adequate but sulphide is limiting in the medium the NR-SOB obtain maintenance energy requirements (or ATP) by converting nitrate to nitrite with 0.25 of the electron requirements and nitrite is spilled into the medium. Nitrite concentrations increase in the incubation medium and further inhibits SRB activity ( Based on a similar system proposed for the anaerobic oil well water with added nitrate to prevent souring( production of hydrogen sulphide) (see Hubert and Voordouw 2007).

Methane mitigation by supplementation with nitrate and sulphur

Until recently there had been no attempts to study dietary nitrate utilization in ruminants in relation to the effects on methanogenesis, where nitrate represents the sole or major source of dietary fermentable nitrogen. Feeding trials with young animals appear to confirm the use of nitrate as a supplement to low protein diets with no side effects (Trinh Phuc Hao et al 2009; Ngoc Huyen Le Thi 2010; Nguyen Ngoc Anh et al 2010).

Takahashi and Young (1991) showed that nitrate inhibited methanogenesis in sheep in vivo when  25-30 g sodium nitrate was added via the rumen in un-acclimated animals that were also fed diets high in fermentable nitrogen. In a similar study by Sar et al (2004a) shown in Figure 12, sheep were fed half their ration at zero hour and nitrate or water (control) was administered at 30min after the animals were fed. Inhibition of methane production appeared to be delayed by some 30min Thus there is strong evidence that nitrate addition to the diet of ruminants severely inhibits methane production and more so in the animal adapted to nitrate (Allison et al 1981; Allison and Reddy 1984)).

Van Zijderveld et al (2010a) have made the most comprehensive study of the effects of nitrate and sulphur on enteric methane production in sheep  In their studies, lambs were gradually introduced to nitrate (3.4% of diet DM)  with or without sulphate (3.5 % in diet DM) or urea with or without sulphate (1.5%+3.4% of DM) in a maize silage based diet over 4 weeks and CH₄-production was subsequently determined in respiration chambers. CH₄-production was significantly decreased by both supplements (nitrate: - 32%, sulphate: -16% and nitrate + sulphate: -47% relative to the urea control). The decrease in CH₄-production as a result of nitrate feeding was most pronounced in the period directly after feeding, whereas the CH₄-reduction associated with sulphate feeding was observed during the entire day (Figure 13). CH₄ suppressing effects of nitrate and sulphate were independent and additive. Nitrate in the diet induced only slightly elevated blood levels of methemoglobin. When nitrate was fed in combination with sulphate,  methemoglobin was not detected .

Similar results were shown by Nolan et  al (2010).In the latter studies, sheep were acclimated to one of three diets consisting of chaffed oat hay supplemented with 0%, 2% or 4% KNO3 and made iso-nitrogenous by the addition of urea (4 sheep/diet). Nitrate supplementation did not raise blood methaemoglobin, reduce DM intake or affect whole tract or ruminal (in situ) DM digestibility. Nitrate did cause changes in rumen fermentation consistent with its acting as a high-affinity hydrogen acceptor, i.e. a reduced propionate molar percentage in rumen VFA, increased molar acetate: propionate ratio and a lower methane yield per kilogram of DM ingested (for the diet with 4% KNO₃, methane was reduced by 23% compared to the sheep fed urea only). The data confirm the capacity of dietary nitrate to reduce enteric methane production but these researchers found large between-animal variation in methane production and better technology or the use of larger numbers of animals will be required to quantify the effect with confidence.

More recently research has been reported at the Greenhouse Gases and Animal Agriculture conference (2010) showing that both beef cattle and lactating dairy cows may utilize nitrate as a high-affinity hydrogen acceptor and also as a fermentable non protein nitrogen source to support rumen fermentation with significant mitigation of enteric methane production.

Hulshot et al (2010) working in Brazil with Bos indicus cattle fed a total mixed ration  of sugar cane and concentrates (60:40) supplemented with iso-nitrogenous amounts of either urea (1.2% of DM) or nitrate (2.2% of DM) showed that methane emissions (measured using the SF6 inert gas as a marker) were 32% lower on the nitrate diet with little other effects. Unlike the case for many feed additives, where the rumen system adjusts and with time the differences between treated and untreated declines, with nitrate the effects are persistent.

In high yielding dairy cows fed a  maize silage based diet and producing on average 33kg milk/day (Van Zijderveld et al 2010b), it was found by calorimetry that replacing 1.5% urea  with 2.2% nitrate reduced methane production by 16% and that the effects, following adaptation to nitrate (over 4 weeks), were persistent over a 4 month period. There was a minor increase in methaemoglobin levels in blood but the animals displayed no clinical signs of methaemoglobinaemia.


Practical aspects of measuring methane mitigation

Any method of measurement of methane production in ruminants has serious draw backs, for instance the need for calorimetric equipment or complex instrumentation for measurement of inert gases. The large variations in individual estimates, particularly by the inert gas procedures (Pinares-Patino and Clark 2008) together with the need for specialized skills has prevented large scale research, particularly in the developing countries where research priorities for animal production are quite different to the systems in industrial countries. Furthermore, for any National mitigation scheme  the wide range in types of diets fed in developing countries is a further complication. Also there are some serious doubts about the accuracy of measurements. In studies where the reduction in methane production is the target a more simplified approach may be taken.

Recently Madsen et al (2010) proposed a greatly simplified approach to quantifying methane production from ruminant animals. Under most research requirements it is a measure of the percent reduction of methane to a particular input that is required particularly when feed additives are being assessed for their methane-inhibiting abilities. This particularly applies to the addition of high affinity electron acceptors to provide an electron sink other then methane. Nitrate has a dual role of being able to accept electrons more efficiently then carbon dioxide. Nitrate is also a source of non protein nitrogen which provides N to the ammonia pool in the rumen (see Leng 2008), a prerequisite for the supplementation of ruminants fed crop by-products low in crude protein.

New developments initiated in the MEKARN program in SE Asia (http://www.mekarn.org/workshops/pakse/abstracts.htm) have opened up the methane mitigation research for rapid progress with ruminants fed diets that are more likely to be adopted by small-scale farmers.  A modification of the method advocated by Madsen et al (2010) is being used to assess the potential reductions in methane that can be achieved when providing alternative electron acceptors via nitrate in the diet. The simplistic and inexpensive requirements make this a useful approach with potential to increase the rate of progress at low cost. Madsen et al (2010) adopt the concept that provided carbon dioxide production by ruminants can be estimated, or calculated, then a measurement of the methane to carbon dioxide ratio in gas samples allows a reasonably accurate method for predicting methane produced by the animal. In these authors’ views the carbon dioxide can be calculated from metabolisable energy values either from past research or from measurements of heat production.

The concept that is being developed through the MEKARN research builds on that of Madsen et al (2010).  In studies where nitrate has replaced urea as a fermentable N source in ruminant diets it has been well demonstrated that energy metabolism is not perturbed and the animals have consumed the same quantity of dry matter and have grown at the same rate (Nguyen Ngoc Anh et al 2010). It can therefore be assumed that the animals would have the same carbon dioxide entry rate. If this is the case, then the ratio of methane to carbon dioxide in breath or even in air in an animal house can be used to determine the percentage reduction in methane where urea in the diet is replaced by nitrate. These can be instantaneous samples captured from the actual breath or by enclosing the animal or its head in a closed space (Photo 1). The gases that contain the breath of the animal can then be collected and analyzed.

If the methane production rate is (A) and  the carbon dioxide entry rate (B) is unchanged, and the ratio of methane to CO₂ is ( R),  then the  following equations apply for the urea supplemented animal

A_U(urea)=B x R1

A_N(nitrate) =B x R2

Then methane reduction =  =  B(R1-R2)/BR1  x100

The reduction in methane production

The approach is simple. The requirements are portable instruments for measuring methane and carbon dioxide and methods to collect a gas sample that contains sufficient respired gases from the animal. This can be done where animals are concentrated in rooms that are partially airtight or by enclosing an animal in a sealed container (Photo 1)  or by direct collection of gas from the head of the animal (Photo 2) . The mechanisms for collection can be as innovative as necessary. The requirement is that the study should be adequately replicated and that the animals have the same energy metabolism or are adjusted to the same basal diet.

Van Zijderveld et al (2010a) measured both carbon dioxide and methane production in sheep fed nitrate, or sulphate, or nitrate plus sulphate added to a control diet based on corn silage (Table 4).Methane production was directly affected by the supplements and there was a small significant difference in carbon dioxide production between treatments . Never the less the reduction in methane production calculated from the methane to carbon dioxide ratio (calculated from the daily production of both gases) compared favorably to the actual measurement of the reduction in methane production (Table 4). If gas had been withdrawn from the chambers at a constant rate, then the ratio of the gases would clearly have supplied a good estimate of the percent reduction in methane.

Some preliminary attempts to use the methane to carbon dioxide ratio to estimate the methane mitigation in percentage change

There seems to be no reason why the methane carbon dioxide ratio cannot be used to define the extent of methane mitigation either at a point in time or by obtaining a sample of gas from a chamber continuously or by frequent sampling of any gas phase that receives the animals’ breath. To quantify the degree of methane mitigation it would be necessary to either use metabolisable energy values from the literature or make individual measurements by the now traditional procedures.

Iv Sophea (2010) trained young goats to quietly breathe into a plastic bag for gas collection (Photo2).

Respired gases were collected  at 4 30 pm over 3min. This was 1 h after a meal of rice straw and mimosa foliage which had been provided at 8 am had been consumed. The fermentable N source was either urea or nitrate to provide iso-nitrogenous quantities. Nitrate, as potassium salt was varied from 0 to 8% of the ration as shown in Figure  15.

The calculated methane reduction from the methane carbon dioxide ratio is shown in Figure 15.

References

Akunna J C, Bizeau C and Moletta R  1994 Nitrate reduction by anaerobic sludge using glucose at various nitrate concentrations: ammonification, denitrification and methanogenic activities. Environmental  Technology 15:41-49

Alaboudi R and Jones GA  1985 Effects of acclimation to high nitrate intake on some rumen fermentation parameters in sheep. Canadian Journal of Animal Science  65:841-849

Allison M J and Reddy CA  1984 Adaptations of gastrointestinal bacteria in response to changes in dietary oxalate and nitrate. In “Current Perspectives in Microbial Ecology”, Proceedings of the 3^rd International Symposium on Microbial Ecology, 7-12 August 1983. Klug M J, Reddy C A (editors) American Society of  Microbiology Washington DC

Allison M J, Reddy C A and Cook H M  1981 The effects of nitrate and nitrite on VFA and CH 4 production by rumen microbes.  Journal of Animal Science 53 (Supplement. 1) 283-416

Carver L A and Pfander W H 1973 Urea utilization by sheep in the presence of potassium nitrate. Journal of Animal Science 36:581-587 http://jas.fass.org/cgi/reprint/36/3/581

Cheng K J and Phillippe R C  1988 Identification of rumen bacteria that anaerobically degrade nitrite. Canadian Journal of  Microbiology 34:1099–1102

Cheng K L, Phillippe R C, Kozub G C, Majak W and Costerton J W  1985 Induction of nitrate and nitrite metabolism in bovine rumen fluid and the transfer of this capacity to untreated animals. Canadian Journal of Animal Science 65:647-652

Crawford R F, Kennedy W K and Davison K L 1966 Factors influencing the toxicity of forages that contain nitrate when fed to cattle. Cornell Veterinary Medicine 56:3-17

Dougherty R W, Mullenax C H and Allison M J  1965 Physiological phenomena associated with eructation in ruminants. Page 159 In “Physiology of Digestion in the Ruminant”. Dougherty R W (editor) Butterworths Inc, Washington DC

Geurink J H, Malestein A, Kemp A and Klooster A 1989 Nitrate poisoning in cattle.3. The relationship between nitrate intake with hay or fresh roughage and the speed of intake on the formation of methaemoglobin. Netherland Journal of Agricultural Science 27:268-276

Gordon G L R and Phillips M W  1998. The role of anaerobic gut fungi in ruminants. Nutrition Research Review 11:133–168

Guo W S, Schaefer D M, Guo X X, Ren L P and Meng Q X  2009 Use of nitrate-nitrogen as a sole dietary nitrogen source to inhibit ruminal methanogenesis and to improve microbial nitrogen synthesis in vitro. Asian-Australian Journal of Animal Science 22. 542-549

Greene E A, Hubert C, Nemati M, Jenneman G and Voordouw G  2003 Nitrite reductase activity of sulphate–reducing organisms prevents the inhibition by nitrite reducing, sulphide oxidizing bacteria. Environmental Microbiology 5:607-617

Guo W S, Schaefer, D M Guo, X X, Ren L P, Meng Q X 2009  Use of nitrate-nitrogen as a sole dietary nitrogen source to inhibit ruminant methanogenesis and improve microbial nitrogen synthesis In vitro, Asian-Australian Journal of Animal Science 22, 542-549

Hall O G, Gaddy C D and Hobbs C S  1960 Effect of nitrates and nitrite upon forage utilization by rumen microorganisms in vitro and upon ration digestibility by lambs. Journal of Animal Science 19:1305 (Abstract) http://journals.cambridge.org/download.php?file=%2FBJN%2FBJN59_02%2FS0007114588000388a.pdf&code=ec6620c3a9bd82d2b810d4d41529542f

Hubert C and Voordouw G  2007 Oil field souring control by nitrate-reducing Sulphurospirillium spp. that outcompete sulphate-reducing bacteria for organic electron donors. Applied Environmental Microbiology 73: 2644-2652

Hulshof R B A  A,  Berndt  J J,  Demarchi A,  Gerrits W J J and  Perdok H.B  2010 Dietary nitrate supplementation reduces methane emission in beef cattle fed sugarcane-based diets Greenhouse Gas Conference Banff Canada , page 81 http://www.ggaa2010.org/pdfs/Proceedings_Abstracts.pdf

Hungate R E  1965 The rumen and its microbes. Academic Press, New York

Iv Sophea  2010 Effect of different ratios of supplementary sodium nitrate replacing urea on growth rates and methane production in goats fed sugar palm-soaked rice straw and mimosa foliage. Proceedings of International Conference on Live stock production, climate change and resource depletion, Pakse, LAO PDR 9-11 November 2010 (Editors: T R Preston and B Ogle). http://www.mekarn.org/workshops/pakse/abstracts/sophea.htm

Leng R A  2008 The potential of feeding nitrate to reduce enteric methane production in ruminants. Report to Department of Climate Change, Commonwealth Government, Canberra. 82 pp.

Lewis D  1951 The metabolism if nitrate and nitrite by the sheep. 1. Reduction of nitrate in the rumen of the sheep. Biochemistry Journal 48:175-179

Kemp A, Geurink J H, Haalstra R T and Malestein A  1977 Nitrate poisoning in cattle. 2. Changes in nitrate in rumen fluid and methaemoglobin formation in blood after high nitrate intake. Netherlands Journal of Agricultural Science 25:51-62

Madsen J , Bjerg B S,  Hvelplund T M,  Weisbjerg R and Lund P  2010 Methane and carbon dioxide ratio in excreted air for quantification of the methane production from ruminants, Livestock  Science (2010, doi:10.1016/j.livsci.2010.01.001

Marais J P, Therion J J, Mackie R I, Kistner A and Dennison C  1988 Effect of nitrate and its reduction products on the growth and activity of the rumen microbial population.  British Journal of Nutrition 59:301-313 http://journals.cambridge.org/download.php?file=%2FBJN%2FBJN59_02%2FS0007114588000388a.pdf&code=0862ade8eb91dbc4e4a6c55bf429b91c

Mitchell G J, Jones J G and Cole G A  1986 Distribution and regulation of nitrate and nitrite reduction by Desulfovibrio and Desulfotomaculum species. Archives of  Microbiology  144:35-40

Nikolic J A, Jovanovic M and  Andric R  1984 Some effects of nitrate on microbial metabolism in rumen contents. Acta Veterinaria, Beograd 34, 3-14.

Nolan J V  1999 Stoichiometry of rumen fermentation and gas production. In: ‘Meeting the Kyoto Target, Implications for the Australian Livestock Industries”, Reyenga P J, S M (editors) pp. 21-28: Bureau of Rural Sciences

Nolan  J V, Hegarty R S, Hegarty J, Godwin I R and Woodgate R  2010 Effects of dietary nitrate on rumen fermentation, methane production and digesta kinetics in sheep. Animal Production Science 50 (8) 801–806 doi:10.1071/AN09211

Ngoc Huyen Le  Thi, Do H Q, Preston T R and Leng R A 2010 Nitrate as fermentable nitrogen supplement to reduce rumen methane production. Livestock Research for Rural Development. Volume 22, Article #146. http://www.lrrd.org/lrrd22/8/huye22146.htm

Nguyen Ngoc Anh, Khuc Thi Hue, Duong Nguyen Khang and  Preston T R 2010 Effect of calcium nitrate as NPN source on growth performance and methane emissions of goats fed sugar cane supplemented with cassava foliage. Proceedings MEKARN Conference 2010  Live stock production, climate change and resource depletion.  http://www.mekarn.org/workshops/pakse/abstracts/anh_grrc.htm

Pinares-Patino C S and Clark H 2008 Reliability of the sulphur hexafluoride tracer technique for methane emission measurement from individual animals: an overview. Australian Journal of Experimental Agriculture 48: 223–229.

Preston T R and Leng R A 2009 Matching Livestock Systems to Available Resources in the Tropics and Sub Tropics. Penambul Books, Armidale, Australia. Web edition. http://utafoundation.org/P&L/preston&leng.htm

Sar C, Santoso B, Gamo Y, Kobayashi T, Shiozaki S, Kimura K, Mizukoshi H, Arai I and Takahashi J 2004a Effects of combination of nitrate with β1-4 galacto-oligosaccharides and yeast (Candidakefyr) on methane emission from sheep. Asian-Australasian Journal of Animal Science 17:73–79

Sar C, Santoso B, Mwenya B, Gamo Y, Kobayashi T, Morikawa R, Kimura K, Mizukoshi H and Takahashi J  2004b Manipulation of rumen methanogenesis by the combination of nitrate with β1-4 galacto-oligosaccharides or nisin in sheep. Animal Feed Science and Technology 15:129–142

Simon J 2002 Enzymology and bioenergetics of respiratory nitrite ammonification. FEMS Microbiology Reviews 26:285-309

Sokolowski J H, Garrigus U S and Hatfield E E 1960 Some effects of varied levels of potassium nitrate ingestion by lambs. Journal of Animal Science 19:1295 (Abstract) http://jas.fass.org/cgi/reprint/19/4/1216

Sokolowski J H, Hatfield E E and Garrigus U S  1969 Effects of inorganic sulphur on KNO₃ utilization by lambs. Journal of Animal Science 28:391-396 http://jas.fass.org/cgi/reprint/28/3/391

Takahashi J and Young B A 1991 Prophylactic effect of L-cysteine on nitrate-induced alterations in respiratory exchange and metabolic rate in sheep. Animal Feed Science and Technology 35:105-113

Tillman A D, Sheriha G M and Sirny R J  1965 Nitrate reduction studies with sheep. Journal of Animal Science 24:1140-1146 http://jas.fass.org/cgi/reprint/24/4/1140

Trinh Phuc Hao, Ho Quang Do, Preston T R and Leng R A 2009 Nitrate as a fermentable nitrogen supplement for goats fed forage based diets low in true protein.  Livestock Research for Rural Development. Volume 21, Article #10.  http://www.lrrd.org/lrrd21/1/trin21010.htm

Van Zijderveld S M, Dijkstra J, Gerrits W J J,  Newbold J R and  Perdok H B  2010b Dietary nitrate persistently reduces enteric methane production in lactating dairy cows. In Greenhouse gases and animal agriculture conference. October 3-8, 2010 Banff, Canada, T119, page 127 http://www.ggaa2010.org/pdfs/Proceedings_Abstracts.pdf

Van Zijderveld S.M, Gerrits W.J J, Apajalahti J A, Newbold J R, Dijkstra J, Leng  R A and Perdok H B  2010a Nitrate and sulfate: effective alternative hydrogen sinks for mitigation of ruminal methane production in sheep. Journal of Dairy Science. Volume 93, 5856-5866 http://download.journals.elsevierhealth.com/pdfs/journals/0022-0302/PIIS0022030210006387.pdf
