Livestock Research for Rural Development 16 (10) 2004

Citation of this paper

Measuring fertility of soils by the bio-test method

Boonchan  Chantaprasarn and T R Preston*

Dairy Farming Promotion Organization of Thailand (DPO)
Northeast branch, 344 Moo 15 Thapra, Muang, Khon Kaen, 40260, Thailand
chantaprasarn@yahoo.com
* UTA-TOSOLY, AA#48, Socorro, Colombia
regpreston@utafoundation.org


Abstract

The experiment was conducted at An Giang University, Viet Nam. Eight kinds of soil were taken from different places around An Giang University to measure fertility of soils by using the bio-test with maize (Zea mays) and rice (Oryza sativa) as indicators, according to a  8x2 factorial arrangement  with three replications. The soils were sand (negative control) , clay soil, loam mixed with compost 1:1, loam with leaves and compost from the shade under the trees, sandy loam, sub-soil under loam, sub-soil under sandy loam (sub-soil taken at  more than 20 cm. depth) and compost (positive control).  The soil samples were put into 2 liters capacity plastic bags and 3 seeds of either maize or rice was planted in each bag (3 bags per soil/indicator plant). Date to germination, plant height at every 5 days intervals and final weight of biomass after 28 days were measured.

There were significant differences between soils in the growth in height and the amount of biomass of both the maize and rice after 28 days, and a significant interaction for soil * plant for both measurements. For maize, there was a positive curvilinear response of biomass weight to level of organic matter and percentage of N in the soils (R2= 0.67 and 0.92), but no response in rice (R2= 0.03 and 0.015). The proportion of roots in the total biomass decreased as soil N and organic matter increased.

It is suggested that measuring fertility of soils by the bio-test method is a simple, practical and low cost procedure in integrated farming systems. The maize bio-test indicator was better suited to measuring fertility of soil than rice.

Key words: Bio-test method, maize, organic matter, pH, rice, soil fertility


Introduction

Knowing the fertility of soils is important in agriculture particularly in making decisions on planting of crops. The measurement of the  fertility of soils is usually done by chemical analysis for plant nutrients such as nitrogen (N), potassium (K), phosphorus (P) and trace elements, as well as physical measurements of soil structure. Such analyses require access to a laboratory and this is not feasible  for most farmers, especially those with limited  resources.  Planting some indicator plants in the soil and measuring their growth and production is one way to measure fertility of soils in an indirect way (Nguyen Phuc Tien et al 2003).

In this experiment, maize and rice were chosen as bio-test indicator plants for measuring fertility of a range of soils.


Materials and Methods

Treatments

There were two sets of treatments (types of soil and indicator plants), arranged as a 8*2 factorial with 3 replications in a Randomized Complete block design  (RCB) (Table 1).

Table 1: Experiment layout

Block 1

SlM1

LoM1

PcM1

SmR1

SsM1

NcM1

PcR1

LoR1

LlR1

NcR1

ClM1

SmM1

SsR1

LlM1

ClR1

SlR1

Block 2

SlM2

SlR2

SmM2

SsM2

SmR2

ClR2

NcR2

LlM2

LlR2

SsR2

ClM2

LoR2

NcM2

LoM2

PcM2

PcR2

Block 3

LlR3

LoR3

SmM3

SsR3

SmR3

NcM3

PcR3

PcM3

SlM3

ClR3

LlM3

SsM3

NcR3

ClM3

LoM3

SlR3


Table 2 : 8 types of soil

Types of soil Detail
Sand (Nc) Used as a negative control
Clay soil (Cl) Took from behind animal experiment unit place, 0-20 cm. depth.
Loam with compost (Lo) Loam took from the rear of animal experiment unit place, 0-20 cm. depth and mixed with compost 1:1
Sub soil loam (Sm) Sub soil under loam, more than 20 cm. depth
Loam with leaf (Ll) Loam with leaf compost Took from shade area under trees, 0-20 cm. depth.
Sandy loam (Sl) Took from the rear of guest house, 0-20 cm. depth.
Sub soil sandy (Ss) Sub soil under sandy loam, more than 20 cm. depth
Compost (Pc) Used as a positive control

The  two indicator plants were:

Procedure

The 8 types of soil (Table 2) were taken from different places around  An Giang University and put into plastic bags (2 liters capacity). 3 seeds of maize or rice were planted in each bag according to the experimental layout in Table 1. A hole was put in the bottom of each bag so the excess water could drain away. Water was applied uniformly to all bags every morning and evening and observations made of germination and growth of the plants. When the seeds had germinated 1 or 2 plants were removed to leave only one seedling in each bag (Photo 1).

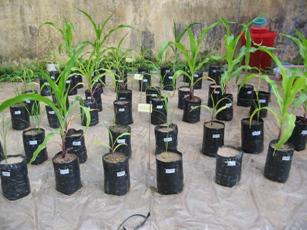

Photo 1: The maize and the rice plants growing in the different soils
Measurements

The dry matter (DM),  organic matter, N and pH of soils were measured at the beginning. The height of the plants was measured every 5 days over a total period of 28 days. After 28 days, the plants and roots were removed from the bags, washed free of soil, and weighed 30 minutes later, the green parts (leaves and stems) and the roots separately.

Laboratory analyses

The chemical analyses were done following standard procedures according to the Association of Official Analytical Chemists procedures (AOAC 1990), except for DM which was determined by micro-wave radiation (Undersander et al 1993).

Statistical analyzes

The linear regression of height on days was calculated to determine growth rate in height. The ANOVA GLM option of the Minitab (2003) software was used to analyze the data. The sources of variables in the model were: soils, blocks and error. The Tukey test in the Minitab software was used to separate mean values that differed when the F-test was significant at P<0.05.


Results and discussion

Chemical composition of soils

The DM content was highest in the negative control of sand (Nc) and lowest in the positive control of compost Pc (Table 3). The soils with high organic matter content were also high in nitrogen. Organic matter was highest in the positive control of compost (Pc) and lowest in Nc. Most of the soils were alkaline (pH >7) except Ll that had a pH of 5.8. Nitrogen content was highest in Pc (1.82 %) and lowest in Nc (0.05 %).

Table 3: Chemical composition of soils

Types of soil

Dry matter,
(%)

Organic matter,
(% in DM)

pH

Nitrogen,
(% in DM)

Sand (Nc, negative control)

96.6

4.0

7.6

0.05

Sub soil sandy (Ss)

74.1

28.5

7.8

0.11

Sandy loam (Sl)

72.7

29.5

7.6

0.11

Clay soil (Cl)

71.9

32.0

7.4

0.11

Sub soil loam (Sm)

71.7

33.0

7.5

0.26

Loam with compost (Lo)

64.0

42.0

7.4

1.32

Loam with leaf (Ll)

61.8

52.0

5.8

0.63

Compost (Pc, positive control)

29.2

85.1

7.2

1.82

 Germination

Maize germinated faster than rice (P<0.001) but there were no differences due to type of soil (P = 0.21) (Table 4).

Table 4 :  Days to germinate

Types of soil

Maize Rice Average
Sub soil sandy (Ss) 4.7 5.3 5
Sandy loam (Sl) 3.7 4.7 4.2
Sand (Nc, negative control) 4 6.7 5.3
Clay soil (Cl) 2.7 5.7 4.2
Sub soil loam (Sm) 3.3 4.7 4
Loam with leaf (Ll) 3.7 5 4.3
Loam with compost (Lo) 3.7 5.3 4.5
Compost (Pc, positive control) 3.3 5.3 4.3
Mean 3.63 5.33
SEM / P between plants 0.19 / 0.001
SEM / P between soils 0.533 / 0.21
SEM = Standard error of mean, P = Probability level.

Biomass production

There were differences in the responses of the two indicator plants (Table 4; Figures 1 and 2; Photo 2).

Photo 2. Biomass production of maize and rice after planting 28 days

Highest biomass yield with maize was in the positive control of compost. In contrast, highest yield of rice was in the loam with leaf compost taken from under the trees (Ll). The lowest yield of maize was in the sub-soil taken from under the sandy loam (Ss); while the lowest yield of rice was in the negative control (Nc). (Table 5.)

Table 5 : Biomass of plants DM (g)

Types of soils

Leaves Stems Roots Total
Maize Rice Maize Rice Maize Rice Maize Rice
Sub soil sandy (Ss) 0.38a 0.09 0.19a

-

0.52a 0.04a 1.09a 0.13a
Sandy loam (Sl)

0.42a

0.14

0.24a

-

0.50a

0.06a

1.16a

0.20a

Sand (Nc, negative control)

0.68a

0.03

0.25a

-

0.60a

0.03a

1.53a

0.06a

Clay soil (Cl)

0.93a

0.26

0.57a

-

0.63a

0.08a

2.13a

0.34ab

Sub soil loam (Sm)

1.58a

0.31

0.84a

-

0.98a

0.14a

3.40a

0.45ab

Loam with leaf (Ll)

3.95b

0.76

2.08b

-

2.46b

0.36a

8.49b

1.12b

Loam with compost (Lo)

5.16bc

0.34

3.20c

-

2.20b

0.10a

10.56b

0.44ab

Compost (Pc, positive control)

6.13c

0.15

3.97d

-

1.99b

0.03a

12.09b

0.18a

SEM / P between soils

0.196 / 0.001

0.101 / 0.001

0.123 / 0.001

0.379 / 0.001

SEM / P between plants

0.098 / 0.001

0.051 / 0.001

0.062 / 0.001

0.190 / 0.001

SEM / P between soil* plants

0.278 / 0.001

0.143 / 0.001

0.175 / 0.001

0.536 / 0.001

* Rice  stem included in leaf part.
SEM = Standard error of mean, P = Probability level.

a,b,c,d
= Value within the same column without superscript in common differ at P<0.05


Sub soil sandy (Ss), Sandy loam (Sl), Sand (Nc, negative control), Clay soil (Cl), Sub soil loam (Sm), Loam with leaf (Ll), Loam with compost (Lo), Compost (Pc, positive control)   Sub soil sandy (Ss), Sandy loam (Sl), Sand (Nc, negative control), Clay soil (Cl), Sub soil loam (Sm), Loam with leaf (Ll), Loam with compost (Lo), Compost (Pc, positive control)

Figure 1: Green biomass yield of maize in different soils

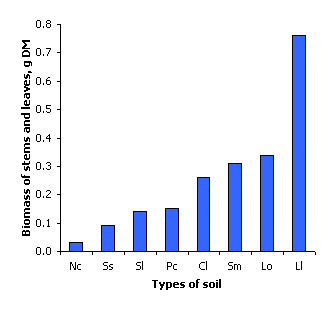

Figure 2: Green biomass yield of rice in different soils


The soil samples which had a high organic matter content (compost, loam mixed with compost and loam with leaf compost from under the trees) supported high biomass production, which was to be expected as organic matter helps the soil hold water and supplies nutrients, which are crucial for crop production (Lickacz and Penny 2001). In the case of maize, biomass production was strongly related to soil organic matter (R2 = 0.67) and N (R2 = 0 .92) (Figures 3 and 4). Similar relationships for maize were reported by Chamnanwit Promkot (2001). There was no relationship between biomass production and soil organic matter, or N, for rice.


 Figure 3. Relationship between organic matter of soils
and biomass yield of maize and rice.

Figure 4. Relationship between N content of soil
and biomass yield of maize and rice


The proportions of roots, stems and leaves in the fresh biomass of maize plants differed among the different soils (Figure 5).  The proportion of the root component decreased as the organic matter and N content of the soils increased (Figures 6 and 7).

Sub soil sandy (Ss), Sandy loam (Sl), Sand (Nc, negative control), Clay soil (Cl), Sub soil loam (Sm), Loam with leaf (Ll), Loam with compost (Lo), Compost (Pc, positive control)

Figure 5. Proportion of roots, stems and leaves of maize plants grown in different kinds of soil


Figure 6; Relationship between N content of soil and the proportion of roots in the fresh biomass of maize plants Figure 7; Relationship between organic matter content of soil and the proportion of roots in the fresh biomass of maize plants

The height and grow rate of plants

The height and growth rate of maize was highest in loam with compost (Lo), while for rice these measurements were highest in loam with leaf (Ll). The height and growth rate of both indicator plants were lowest in the negative control (Nc) (Table 6).

Table 6 : The height and growth rate of maize and rice

Types of soils

Height at 25 days (cm)

grow rate (cm/day)

Maize

Rice

Maize

Rice

Sand (Nc, negative control)

30.2a

13.2a

1.2a

0.5a

Clay soil (Cl)

34.3a

36.3ab

1.4a

1.5b

Sub soil sandy (Ss)

34.8a

22.3ab

1.4a

0.9ab

Sandy loam (Sl)

34.8a

26.7ab

1.4a

1.1ab

Sub soil loam (Sm)

52.8ab

38.3b

2.1ab

1.5b

Loam with leaf (Ll)

67.2b

44.2b

2.7b

1.8b

Loam with compost (Lo)

74.3b

33.8ab

3.0b

1.4ab

Compost (Pc, positive control)

71.3b

26.5ab

2.9b

1.1ab

SEM / P between soils

3.247 / 0.001

0.130 / 0.001

SEM / P between plants

1.418 / 0.001

0.065 / 0.001

SEM = Standard error of mean, P = Probability level

a,b = Value within the same column without superscript in common differ at P<0.05


Figure 8: Relationship between plant height  and green biomass yield for maize

Figure 9: Relationship between plant height and total  biomass
yield for maize

There was a close relationship between plant height and yield of stems and leaves and of total biomass (green parts and roots) (Figures 8 and 9), indicating that plant height of maize after 25 days growth could be used as the indicator of soil fertility.


Conclusions


Acknowledgements

The mini-project was carried out at An Giang University, Vietnam. We wish to thank the SIDA- SAREC for funding this research - a part of the MSc course through the regional MEKARN project.  We also would like to express our thanks to Mr. San Thy and Mr. Chhay Ty, of UTA (Cambodia),  and An Giang University staff who provided valuable assistance in helping to analyze the samples in the laboratory and preparing the materials for conducting the project.


References

AOAC 1990 Official methods of analysis. Association of Official Analytical Chemists, Arlington, Virginia, 15th edition, 1298 pp.

Chamnanwit Promkot 2001 Study of the use of maize and water spinach in a biotest for evaluation of soil fertility. MSc. Course 2001-2003, Sida-SAREC http://www.mekarn.org/minipro/cham.htm

Lickacz J and Penny D 2001 Soil organic matter, Plant Industry Division, Alberta. http://www1.agric.gov.ab.ca/$department/deptdocs.nsf/all/agdex890?opendocument

Minitab 2003 Statistical software Version 13.31.

Nguyen Phuc Tien, Ngo Tien Dung, Nguyen Thi Mui,  Dinh Van Binh and Preston T R  2003: Improving biomass yield and soil fertility by associations of Flemingia (Flemingia  macrophylla) with Mulberry (Morus alba) and cassava (Manihot esculenta) on sloping land in Bavi area.  In: Proceedings of Final National Seminar-Workshop on Sustainable Livestock Production on Local Feed Resources (Editors: Reg Preston and Brian Ogle). HUAF-SAREC, Hue City, 25 – 28 March, 2003. Retrieved September 23, 2003, from http://www.mekarn.org/sarec03/tienbavi.htm

Undersander D, Mertens D R and Lewis B A 1993 Forage analysis procedures. National Forage Testing Association. Omaha pp 154.


Received 5 June 2004; Accepted 10 August 2004
